CAMPAGNOLO ROAD HUBS

This page is for Campagnolo road hubs. Other makes and hub types can be found on these other pages:

Campagnolo Hubs
Other makes road hubs
Track and Single Hubs

HUB DESIGNS AND TYPES
There are two broad types of hubs designed for road bikes:
FREEWHEEL HUBS These have threads for a separate freewheel combined with sprockets that screws on. Most hubs prior to 1980 were designed for screw-on freewheels. Freewheel rear hubs are threaded either to English, Italian or French standards. The English and Italian standards are in mine and most people's opinions perfectly compatible with each other and are by far the most common. French threaded hubs are quite rare but I do have have some French threaded freewheels to fit on on my Freewheels pages.
CASSETTE HUBS These have a cassette (the sprockets) that slides into place over splines and is locked into place by either a screwed-on top gear sprocket or more commonly a lockring. The freewheel in this type is built into the rear hub itself. Shimano introduced cassette hubs to their range in the late 1970s and most manufacturers followed in the later 1980s and 90s. Cassette hubs are quite complicated and some types are compatible with other types please enquire if you are not sure:
Shimano
Shimano cassettes come in 5, 6, 7, 8, 9, 10 and 11spd versions. 9 and 10spd cassettes will fit 8spd Shimano cassette hubs. The 5, 6, 7 and 8spd cassettes come in Uniglide and Hyperglide versions. The Uniglide versions use a screw threaded top gear sprocket to secure all the sprockets in place. The Hyperglide and later cassetes all use a separate lockring. The DA Uniglide cassette's screw threaded top gear sprocket is not compatible with any hubs other than Dura-Ace.
Campagnolo
Campagnolo cassettes are are available in 8, 9, 10 and 11 speed types. There are two types of Campag 8spd cassette – Exa-Drive and standard. The Exa-Drive cassette have one spline wider than the others and will fit both standard and Exa-Drive 8spd hubs. The standard Campag 8spd cassetts have equal width splines and will only fit the early standard 8spd Campag hubs. Campagnolo devised a completely new spline design when 9spd cassettes were introduced and this spline design was also used for 10spd.
Suntour made some cassette hubs but these hubs in the most part only accepted Suntour cassettes.
Most other manufacturers have made their hubs to accept Shimano or Campagnolo cassettes.

HUB WIDTHS (OLD)
Most modern front hubs are 100mm OLD (Over Locknut Dimension).
Rear hubs will be either 120 or 122mm for a 5spd freewheel or cassette, 124, 125 or 126mm for a 6spd or 7spd freewheel or cassette and generally 128 oe 130mm for 8spd freewheels or cassettes and 130mm for 8/9/10spd cassettes.

Please contact me at: hilarystone@hilarystone.com to check on availability and confirm shipping cost.



GEAR SIDED HUB SETS

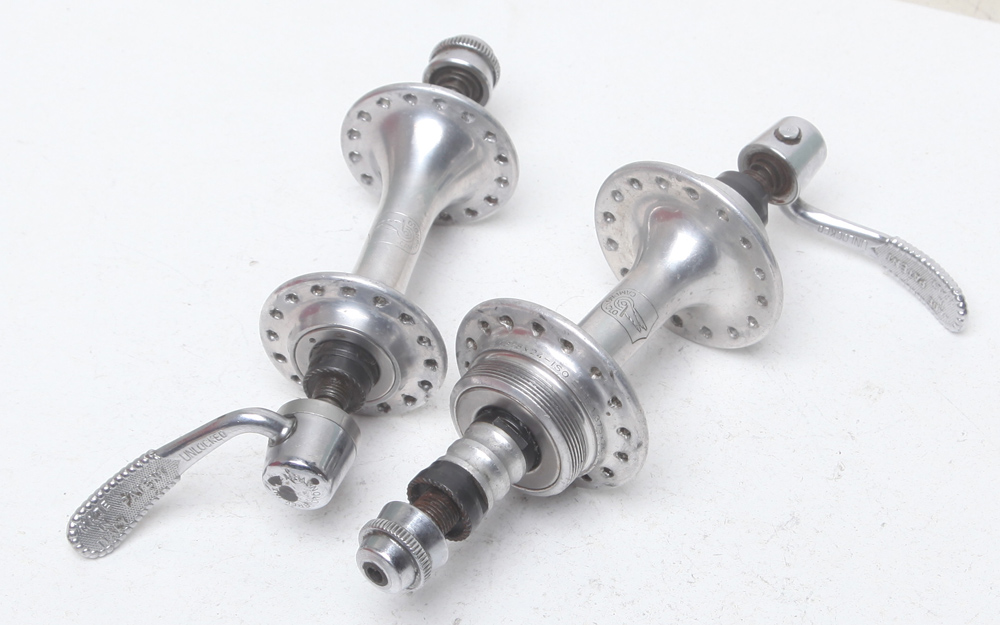

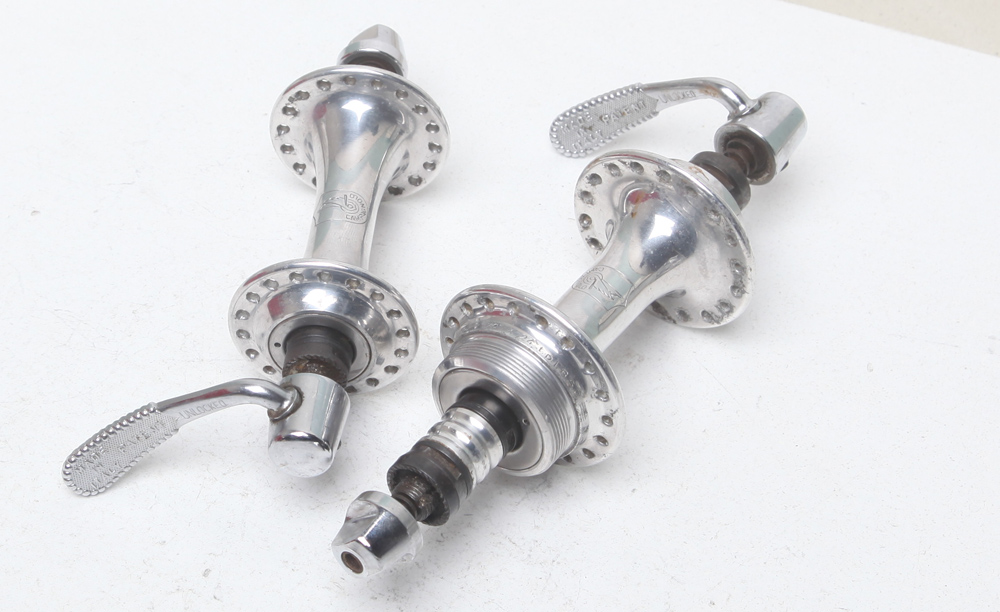

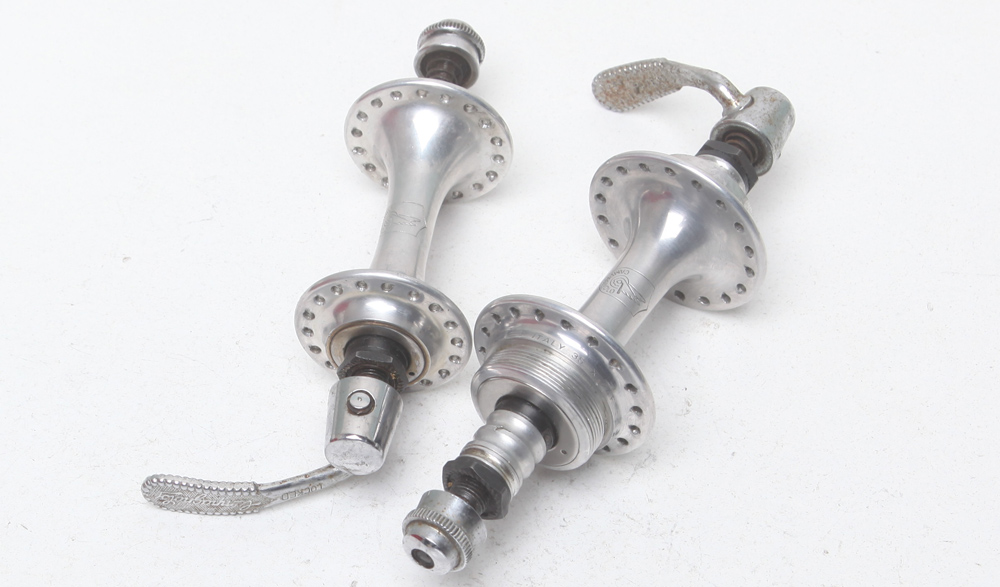

RH2 CAMPAGNOLO RECORD HI/LO FLANGE HUBSET 28H 128mm OLD rear 1970s (Rear hub OLD can be adjusted to customer spec) Excellent £195

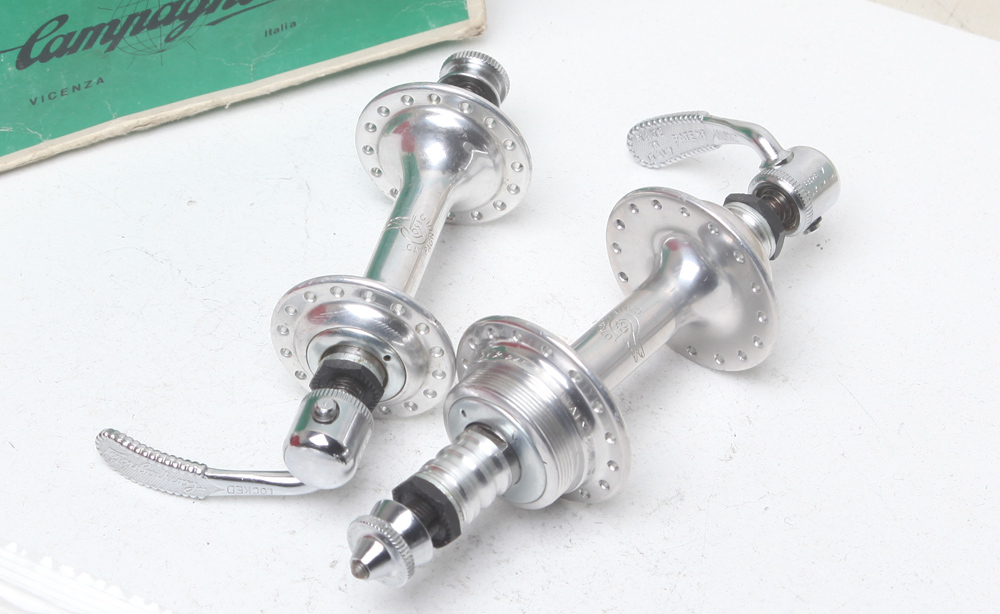

RH3C CAMPAGNOLO RECORD SMALL FLANGE HUBSET 36H with straight skewers so 1960s/70s 127mm OLD rear (Rear hub OLD can be adjusted to customer spec) Excellent SOLD but have other similar ones



Shipping costs:

UK: £4
Europe: £8
North America: £11
Rest of World: £14


The figures above are
estimates, rates may change in
special circimstances.
Contact us for more info.
