Brakes come in different reaches(drop) so it is important to know before buying brake callipers what brake drop your frame requires – mostly the rear brake will have a drop similar to the front although with some older frames this is not the case.
Brake drop is measured from the centre of the bolt mounting hole to the centre of the rim's braking surface immediately below the brake mounting. You should check both front and rear from the front of the forks and the rear of the seatstay bridge.
Road bike calliper brakes also come with two different mountings – those requiring hex nut fitting and those needing Allen bolt also known as recessed nut fitting.

Please contact me at:hilarystone@hilarystone.com to check on availability and confirm shipping cost.

PLEASE NOTE that you get exactly what is in the pictures, not more or less unless specified differently in the text.



BC1–15 CAMPAGNOLO BRAKE CALLIPERS

RECORD BRAKE CALLIPERS 1968–1978
Flat Q/Rs and plain brake pad holders distingush these from the later version. Used in both Nuovo Record and Super Record brakesets and groups.

Have a few in stock but not yet listed, please get in touch if interested





RECORD BRAKE CALLIPERS 1978–85
Rounded Q/Rs and brake pad holders with coated wheel guides distingush these from the earlier version. Used in both Nuovo Record and Super Record brakesets and groups.

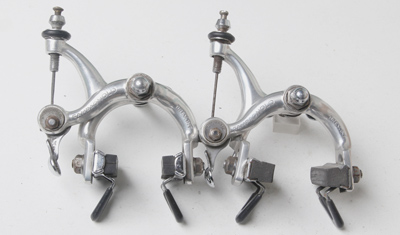

BC2 CAMPAGNOLO RECORD 1970s/80s 42–52mm brake drop, Allen nut (recessed fitting) Excellent a few small marks on brake pad nuts SOLD but have other similar ones available



SUPER RECORD BRAKE CALLIPERS 1985–7
Final version with reshaped arms and Campagnolo logo in script

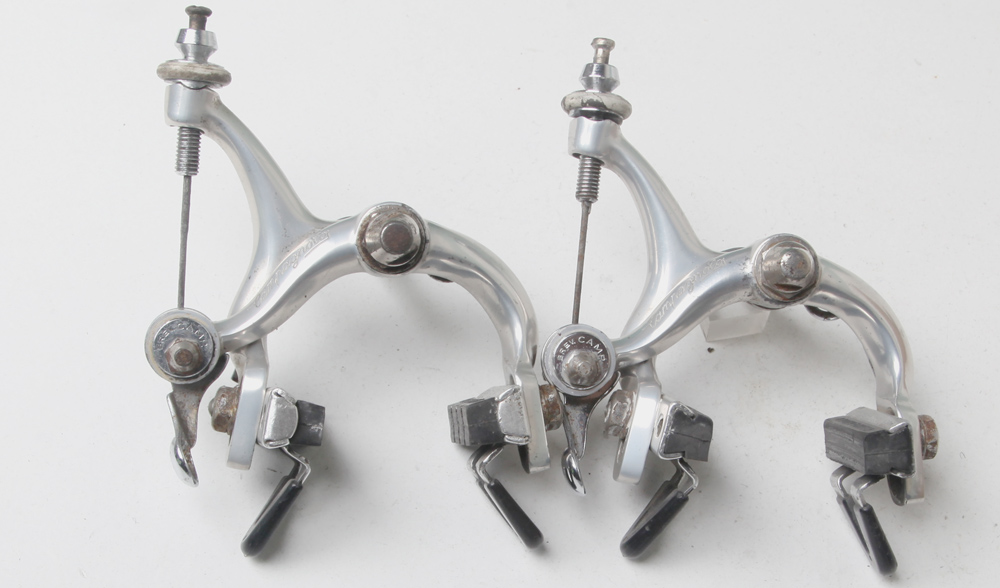

BC4C CAMPAGNOLO SUPER RECORD 1985–7 42–52mm brake drop Allen nut (recessed fitting) Very good traces of corrosion on some fittings SOLD but have similar other sets





VICTORY BRAKE CALLIPERS 1985–8
Sort of a cross between a Gran Sport and Record with the finish of a Record

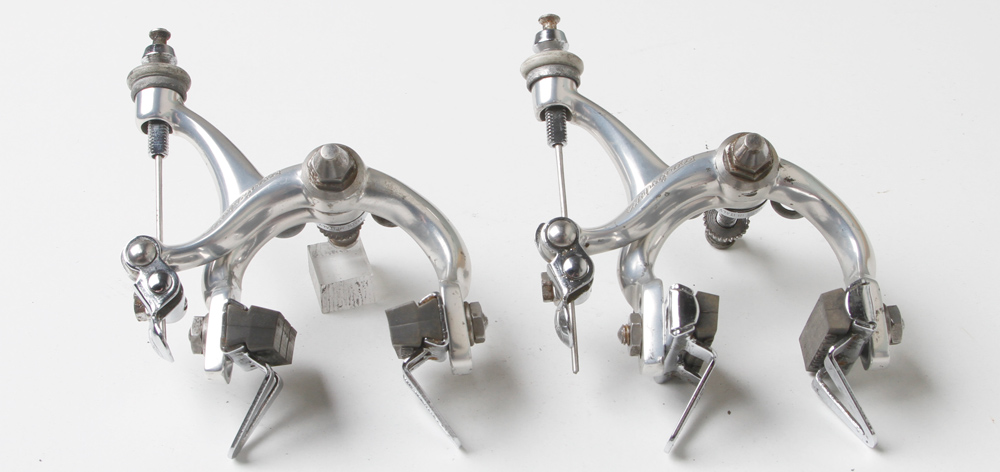

BC6 CAMPAGNOLO VICTORY 1985–8 42–52mm brake drop, Allen nut (recessed fitting) Excellent few tiny marks SOLD but have others available.




DELTA BRAKE CALLIPERS 1986–93

Sorry none at present





OTHER CAMPAGNOLO BRAKE CALLIPERS

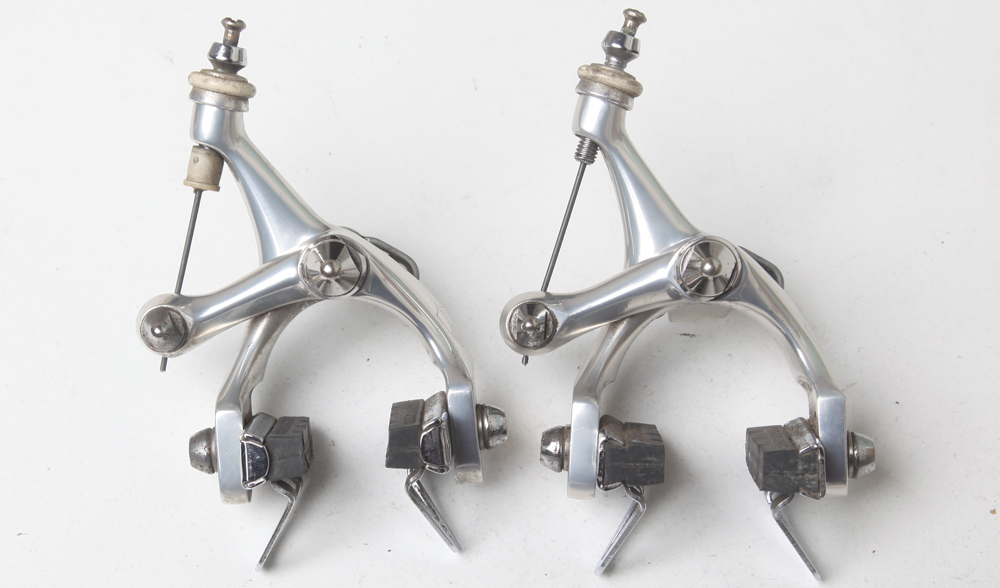

BC10 CAMPAGNOLO ATHENA SIDE-PULL c1994 41–51mm brake drop, Allen nut (recessed fitting) Excellent SOLD but have other similar ones



BC12A CAMPAGNOLO CHORUS DUAL-PIVOT 1980s 39–50mm brake drop, Allen nut (recessed fitting) `Very good to excellent £45

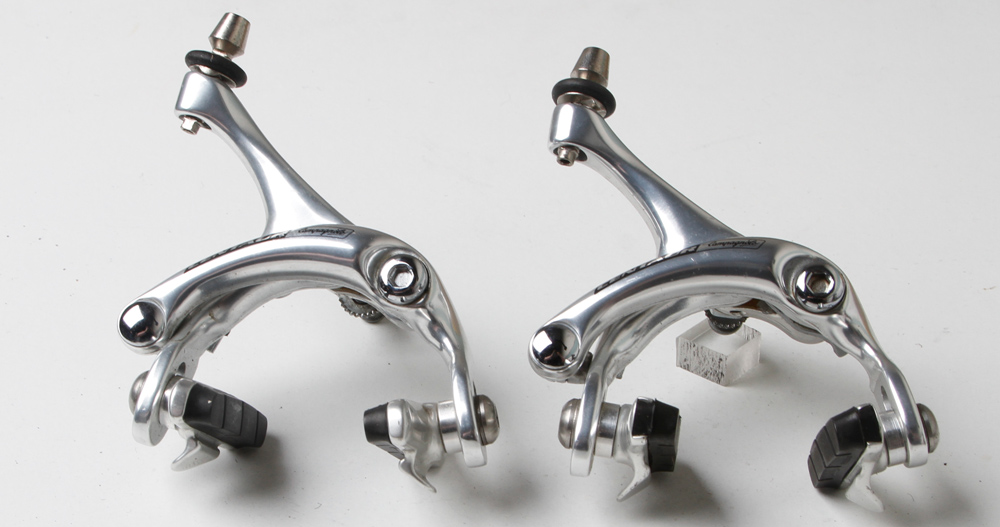

BC13 CAMPAGNOLO CENTAUR DUAL PIVOT BRAKES 39–50mm brake drop, Allen nut (recessed fitting) Excellent £49

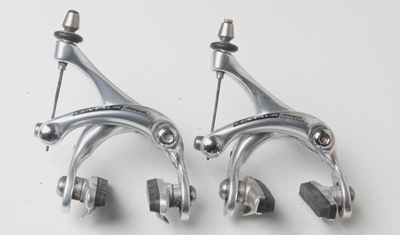

BC13A CAMPAGNOLO CENTAUR DUAL PIVOT BRAKES 39–50mm brake drop, Allen nut (recessed fitting) Excellent £49



BC14A CAMPAGNOLO VELOCE SIDE-PULL BRAKE CALLIPERS 41–51mm drop Allen nut (recessed fitting) Very good £29
