There are three considerations when buying a bottom bracket:

BB threads – the common three are Italian (36 x 24T) and English/ British (1.37 x 24) and Raleigh not high end (1 3/8in x 26 . Less common ones are French (35 x 1), Swiss (35 x 1 but with LH threaded driveside cup) and Chater Lea (1.45in x 26).

Axle length – needs to suit chainset and to some extent the frame…

Taper dimensions JIS – most Shimano and far eastern made chainsets, ISO/Campag – most Campag and European
but not older Stronglight.

CAMPAGNOLO

BBIT2 CAMPAGNOLO PISTA BOTTOM BRACKET 109mm marked 70-SS also suitable Victory double Excellent lightly used £79



BBIT6A CAMPAGNOLO NUOVO RECORD BOTTOM BRACKET 1046A 113mm axle for pre-1978 Campag chainsets marked 70-SS-120 no sleeve Excellent £39



BBIT9 CAMPAGNOLO MTB BOTTOM BRACKET132mm axle marked 70SS- x33 Spe ** New Old Stock** £28



BBIT11 CAMPAGNOLO CHORUS BOTTOM BRACKET 111mm marked 70-SSB Excellent £45



BBIT12 CAMPAGNOLO CARTRIDGE BEARING BOTTOM BRACKET 111mm for most 1990s Campag double chainsets ** New Old Stock** £19



SHIMANO

BBIT4 SHIMANO 600 ARABESQUE BOTTOM BRACKET 119mm axle Excellent £28

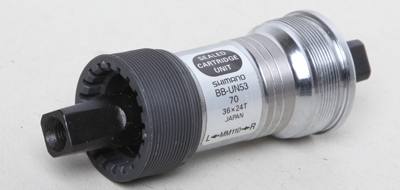

BBIT15 NOS SHIMANO UN53 cartridge BBs 107mm or 110mm length (110mm suits the Andel chainsets and cranks) JIS Italian threaded All one price £15 each



OTHER MAKES



BBIT11 SUGINO BOTTOM BRACKET 113.5mm axle Excellent £24



BBIT19 TIFOSI CARTRIDGE BOTTOM BRACKET 102mm axle to suit CAMPAGNOLO RECORD Excellent lightly used £19

ITALIAN BOTTOM BRACKET AXLES

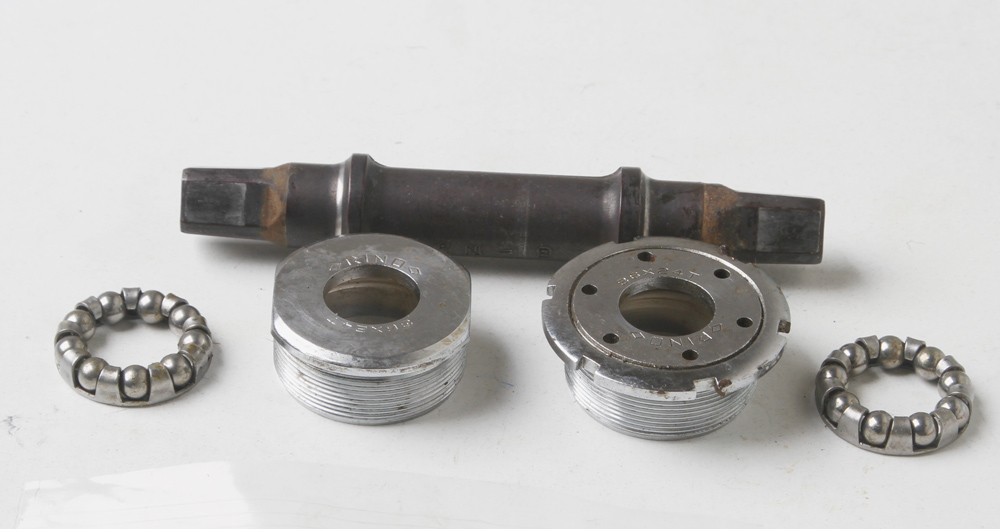

BBAIT1 CAMPAGNOLO CON FERE AXLE for 3/16in ball bearings 1960s 112.5mm long ** New Old Stock** £35
