Italian Bike Frames 56cm and smaller

This page is the first of two for Italian built frames – other European built frames have their own pages.

All our categories can be found in the sub-menu below – clicking on the category you want look at will get you directly to that page.

PLEASE NOTE: I measure all British, American and Japanese frames in inches ctt (centre to top) and convert to the nearest cm, conversely I measure all European and Italian frames in centimetres ctc (centre to centre) and convert to the nearest 0.25in.
A problem with all frames measured ctt is that the top measuring point varies from maker to maker and I try and second guess where the maker intended his measurement to be to – some mean top of top top tube, others the very top of the seat lug, and others to the seat lug top line…

FRAME SIZING
Do not assume that you will need a frame sized the same as your modern one – either seat tube or top tube. Fashion plays a great part in frame design and sizing. In the early years of the 20th century frames were sized as large as possible with virtually no seatpost showing … by contrast riders were advised in the 1920s to have as small a frame as possible.
Race/road frames from the 1920s/early 1930s will generally be sized about 3–5cm smaller than a modern frame but with a much longer top tube and shorter stems. Towards the end of the 1930s larger frame sizes became fashionable – up to 2cm larger than a modern frame. Top tube lengths were still longer used with shorter stems. In the 1940s and 50s frames were sized a bit larger still – 3–4cm more than a modern frame still with longer top tubes and shorter stems. In the 1960s and 1970s frames gradually reduced in size until the late 1980s. At the same time top tubes began to get shorter and stems longer.

Standover height is NOT a useful method of frame sizing either with modern or old frames. Short legged riders will rarely have much or any clearance between the top tube and their crotch unless the frame has a sloping top tube design. Taller riders also face other problems. A complete guide to frame sizing for frames of different periods is impossible to detail here. For frames from the 1980s onwards I suggest buyers look at Dave Moulton’s contributions on frame sizing. Possibly start off with http://davesbikeblog.squarespace.com/blog/2006/2/27/a-different-thought-on-frame-sizing.html
and then look at: http://www.davemoultonregistry.com/MoultonFrameSizeChart

I am willing to advise any customer on frame sizing with older frames.

Featured Frames
British and American road frames smaller than 21.5in
British and American road frames 21.5in–22.5in
British and American road frames larger than 22.5in
Bargain Basement
Classic Road frames pre-1970 smaller than 21.5in
Classic Road frames pre-1970 21.5in–22.5in
Classic Road frames pre-1970 larger than 22.5in
Classic Track & Road-Track frames pre-1970
European frames 56cm or smaller
European frames larger than 56cm
Italian frames 56cm or smaller (look below)
Italian frames larger than 56cm
Lo-Pro &
Retro Time Trial frames

Touring frames
Track frames


Please contact me at: hilarystone@hilarystone.com to check on availability and confirm shipping cost.



DE ROSA LO-PRO TIME TRIAL FRAME 1994–5 ex TEAM GEWISS-BALLAN Piot Ugrumov
Seat Tube (ctc): 51cm (20in), 55cm (21.5in) ctc
Top Tube (ctc): 54cm (21.25in)
Rear dropout width: 130mm
Wheel size: Sprints/700C with brake drop of 48mm
Frame tubing: Columbus Genius
Seatpost size: 27.2mm
This frame was Piotr Ugrumov’s TT frame when was riding for Gewiss-Ballan during the 1994 and 1995 seasons – he was second overall in the 1994 Tour de France and 3rd overall in the 1995 Giro D’Italia. This frame is tig welded from Columbus Genius tubing which has been ovalised… Its in very sound condition though the paint is pretty poor… Really special history… £795



TURRI ROAD FRAME c1972 49cm
Seat Tube (ctc): 49cm (19.25in)
Top Tube (ctc): 52cm (20.5in)
Rear dropout width: 124mm
Wheel size: Sprints/700C with brake drop of 50mm
Frame tubing: Columbus SL
Seatpost size: 27.2mm
Turri is still a cycle shop in Gallarate. This frame dates from the early 1970s and is very beautifully built. I’d be pretty certain its framebuilder had worked at Masi – the detailing is so similar to a Masi of the period including how the lugs are filed carefully thinned down but having wonderful crisp edges. The lugs are the same pattern as used by Masi – note the seat lug with its long point down the seat tube. The dropouts front and rear have been drilled once again beautifully with careful thought given to retaining the maximum strength. The paint is very faded but I think has real charm. £265



BENOTTO 3000 1984 52cm Columbus SL
Seat Tube (ctc): 53cm (21in)
Top Tube (ctc): 55cm (21.5in)
Rear dropout width: 124mm
Wheel size: Sprints/700C with brake drop of 45mm
Seatpost size: 27.2mm
Frame tubing: Columbus SL
The Benotto top frames were built in Italy and very highly regarded in the 1970s and early 80s. Benotto sponsored a pro team and the 3000 model was essentially a Team replica.
This frame is really very special – take a look at the lug shorelines and filing and the little point to the front of the seat lug. It is frequently asserted that these frames were built by De Rosa – it is not true though there were some Team frames back in the 1970s that were… However they did adopt some similar features such as the triangular shaped chainstays and heart cutout in the BB shell; on the other hand the fork crown is pure Pela… However these top of the range Benottos are exceptionally nice. This one dating I think from 1984 is in very sound condition; its major fault is poor chrome on the fork. Priced to take account of this £245

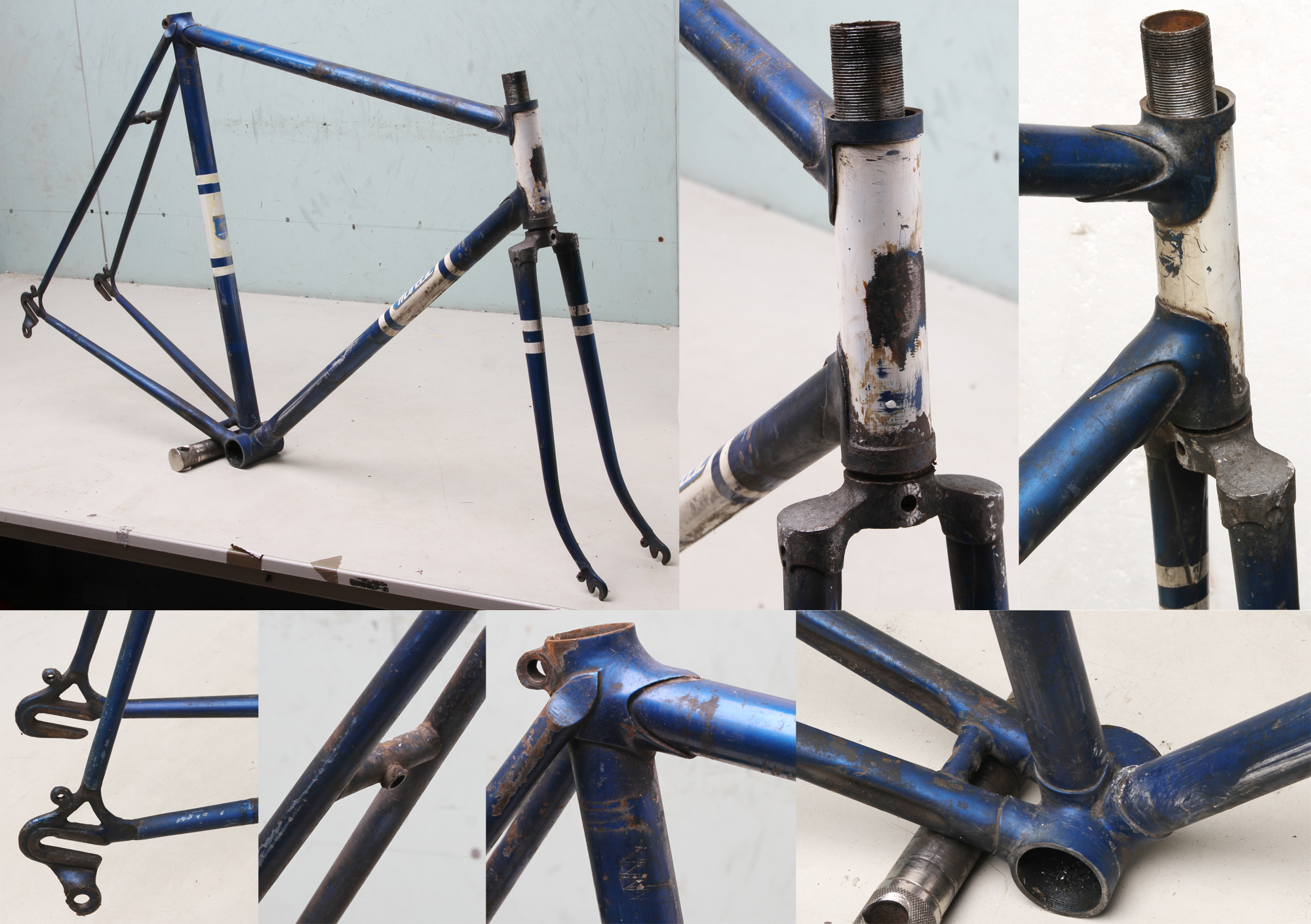

MOTTA ROAD FRAME late 1950s 55cm
Seat Tube (ctc): 55cm (21.5in)
Top Tube (ctc): 56cm (22in)
Rear dropout width: 120mm
Wheel size: Sprints/700C with brake drop of 52mm
Frame tubing: ?????
Seatpost size: 27.0mm
I know nothing about this Italian framebuilder Motta from Lissone, near Milan – I rather think there is nothing to do with the well known Italian pro rider Gianni Motta… Its a very nicely built road frame from I think the late 1950s with Agrati forged dropouts. The paint and chrome are both poor but I think its definitely a very good candidate for an unusual restoration. £165



GALMOZZI ROAD FRAME c1959 53cm
Seat Tube (ctc): 53cm (21in)
Top Tube (ctc): 56cm (22in)
Rear dropout width: 120mm
Wheel size: Sprints/700C with brake drop of 54mm
Frame tubing: Columbus
Seatpost size: 27.0mm
Francesco Galmozzi was ranked in Italy alongside Cino Cinelli and Ugo De Rosa as being one of the very finest framebuilders. He is known to Italian cognoscenti as a name as respected as Cinelli, Masi or others… His frames are especially well constructed with extremely neat brazing and lug finishing for the period. This frame from I think the late 1950s is an excellent example showing his very fine framebuilding skills. It will easily build into a most beautiful late 1950s road bike. I can supply most parts to suit. £475
-

CONCORDE ROAD FRAME 1982–3 53cm Built by Ciocc
Seat Tube (ctc): 53cm (21in)
Top Tube (ctc): 54cm (21.25in)
Rear dropout width: 126mm
Wheel size: Sprints/700C with brake drop of 48mm
Frame tubing: Columbus SL
Seatpost size: 27.2mm
Concorde frames were marketed and sold by by a Belgian/Dutch company and some were built in Italy by Ciocc – this is definitely one – it has Ciocc cutouts in the lugs and bottom bracket shell. Ciocc’s boss and head framebuilder was Giovanni Pelizzoli. Ciocc was his nickname … local dialect for ‘poker faced’. They had a very successful race history in the 1980s.
This frame dates from 1982–3 is in very sound condition (it is dent/ding free) but needs a repaint obviously… £145

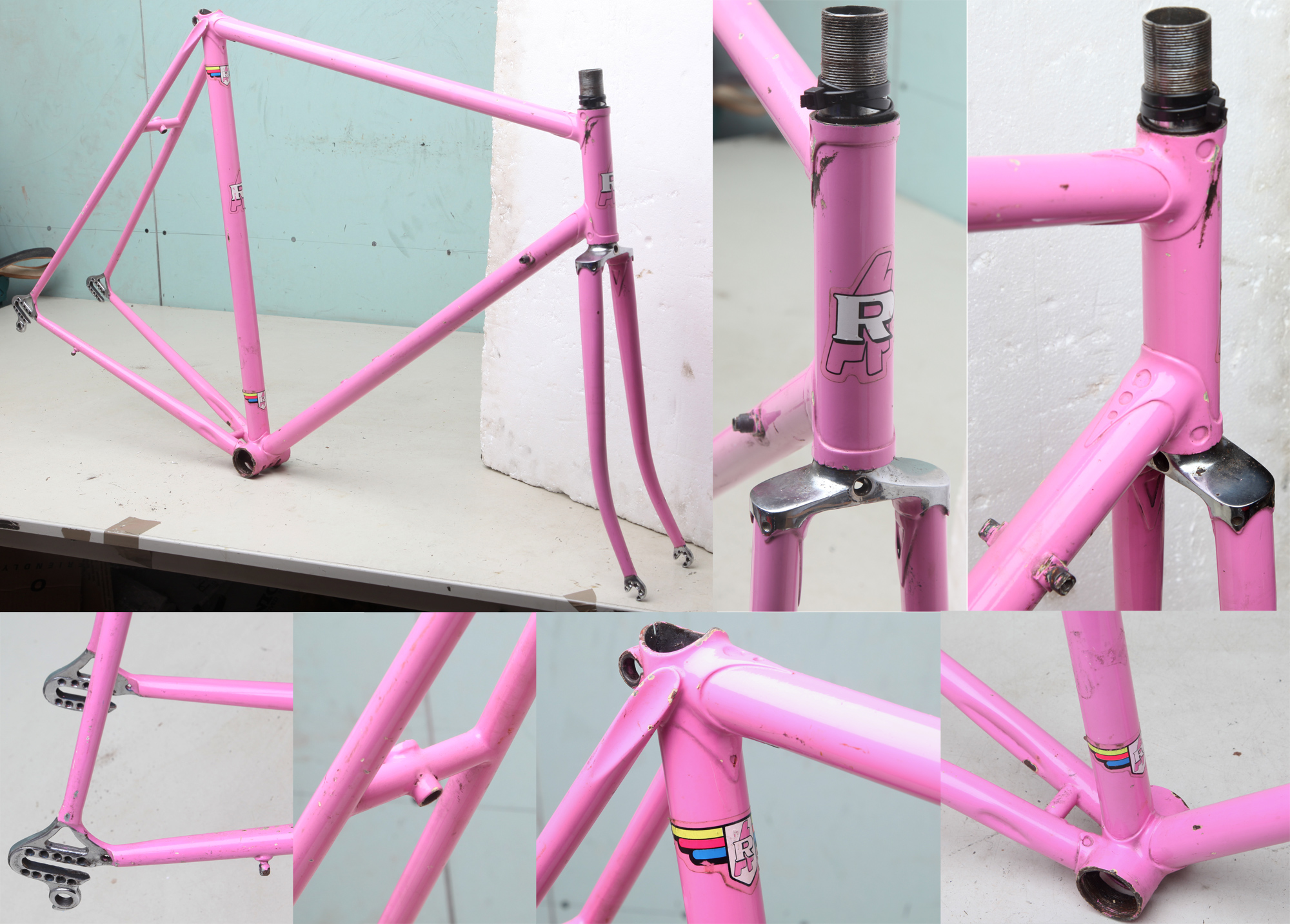

UNKNOWN ITALIAN ROAD FRAME 1970s 56cm Name begins with an R
Seat Tube (ctc): 56cm (22in)
Top Tube (ctc): 56cm (22in)
Rear dropout width: 126mm
Wheel size: Sprints/700C with brake drop of 50mm
Frame tubing: Columbus SL
Seatpost size: 27.2mm
Despite extensive research I have not been able to find out who made or sold this frame originally. Its a very well built Italian road frame from I think early/mid 70s with some nice features – the drilled lugs and rear dropouts… Its in very good condition. £145



SABA ROAD FRAME 49cm c1980
Seat Tube (ctc): 49cm (19.25in)
Top Tube (ctc): 52cm (20.5in)
Rear dropout width: 126mm
Wheel size: Sprints/700C with a brake drop of 47mm
Frame tubing: Columbus SL
BB threads: Italian
Seatpost size: 27.2mm
Saba was the brand name used by the English importer of Columbus tubing, Viner frames and Omas parts in the late 1970s and early 80s… They also sold frames under the Saba name which I believe were probably built in the Viner factory – this is one of them. They are beautifully built with lots of care and attention and pantographed lugs and fork crown. This one is in very sound condition but does need a repaint £175



GLORIA ROAD FRAME 54cm 1937
Seat Tube (ctc): 54cm (21.25in)
Top Tube (ctc): 56.5cm (22.25in)
Rear dropout width: 117mm
Wheel size: Sprints/700C with a brake drop of 48mm
Frame tubing: Not known
BB threads: Italian
Seatpost size: 26.2mm
This Gloria road frame was built for an Italian professional rider in 1937 for use originally with a Vittoria Margherita gear – he later had the rear dropouts replaced with ones suitable for a Campagnolo Corsa gear… It comes complete with an excellent Campagnolo Corsa gear and set of wheels… £2250


COLNAGO MASTER PRO 44.5cm c1990 ** New Old Stock**
Seat Tube (ctc): 44.5cm (17.5in)
Top Tube (ctc): 47cm (18.5in)
Rear dropout width: 126mm
Wheel size: 24in sprints or 24in clinchers 521mm BSD
Seatpost size: 27.2mm
Frame tubing: Columbus
the Master Pro was one of Colnago’s top models and this is really very special – a small adult or children’s version with just a 44.5cm ctc seat tube and built for 24in wheels. It is new old stock and has never been built-up – the fork steerer has never even been cut to length. We can do this and fit a headset. Its in excellent almost unmarked condition with virtually no marks. It obviously was a special. Price on Application



Featured Frames
British and American road frames smaller than 21.5in
British and American road frames 21.5in–22.5in
British and American road frames larger than 22.5in
Bargain Basement
Classic Road frames pre-1970 smaller than 21.5in
Classic Road frames pre-1970 21.5in–22.5in
Classic Road frames pre-1970 larger than 22.5in
Classic Track & Road-Track frames pre-1970
European frames 56cm or smaller
European frames larger than 56cm
Italian frames 56cm or smaller (look above)
Italian frames larger than 56cm
Lo-Pro &
Retro Time Trial frames
Touring frames
Track frames




SHIPPING COSTS

UK: £18
Europe: £35
North America: £90
Japan, Asia, Australasia, Africa, Middle East, South America: £115

Figures above are good estimates, rates may vary for some countries.
Contact us for more info.


CLICK ON the sale images to see a much larger picture!

FRAME CONDITION
Frames are supplied as seen in the pictures unless described otherwise in the text.
Please remember that these frames are generally at least twenty years old and sometimes seventy… In most cases I will know very little of their history but will attempt to describe any problems I can spot – if there are issues I have missed I will always work with the buyer to find a solution.
All frames I sell are in track and straight, with excellent headset threads, bottom bracket shell threads and gear hanger threads if fitted.
I will make every attempt to ascertain whether paint is original, an older repaint or a more recent repaint. Paint quality does vary quite bit…

These categories may be qualified by more detailed description in the text.

Excellent A very useable frame with no obtrusive marks to the paint and no dings or dents. Chrome if present will be free of serious marks unless stated otherwise.

Very Good Perfectly useable frame but with more marks to the paint and chrome if present. Some of the marks may benefit from careful retouching. Generally there will no dents or dings but if present will be small. However if you are concerned about dents/dings with frames in this category please ask me to do an extra check.

Sound Paint and chrome may need redoing depending on how you like your bikes – I appreciate frames with patina which show their age but others may want to repaint. There may be a small ding or two but nothing very significant – older frames often pick up smaller dents which are of no significance to their strength or life. Any more significant dents will be described in the text.

Needing repainting Paint will be poor and in my opinion is not saveable. There may be a small ding or two but nothing very significant – older frames often pick up smaller dents which are of no significance to their strength or life. If there are larger dents they will be described and/or pictured. These are all easily filled by a good framebuilder or frame painter at very little extra cost.

Headsets or bottom brackets fitted to frames are of unknown and unguaranteed condition unless specifically described in the text. Sometimes headsets or bottom brackets will not feel smooth and simply need a service and on other occasions the headset or bottom bracket will need replacing…
For frame without headsets or where you'd like a headset replaced I can offer a fitting service for £15. Please see the headset pages: http://hilarystone.com/headset.html for what is available but please bear in mind that you may need advice on whether a particular headset will fit your frame especially in relation to stack height.
